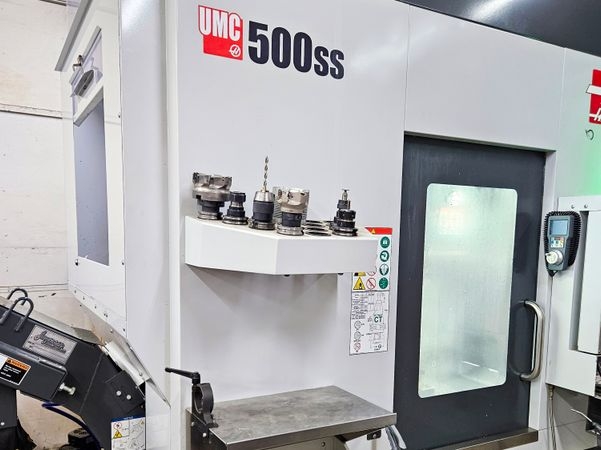

2020 HAAS UMC500SS

ID:9024
Brand:HAAS
Model: UMC500SS
Year:2020
Category:Vertical Machining Center
Location:USA

Located In USA

HAAS UMC500SS AI Chat

Loading ...

Machine Overview

Specs:

X Axis Travel: 24"
Y Axis Travel: 16"
Z Axis Travel: 16"
Rapid Rate X Axis: 900 IPM
Rapid Rate Y Axis: 900 IPM
Rapid Rate Z Axis: 900 IPM
Max Table Load: 500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 30 ATC
Spindle Nose to Platter 4"-20"
Tool to Tool: 1.8 seconds
Chip to Chip: 2.4 seconds

B AXIS:
Travel: 120 ° to 35- °
Max Speed: 50 °/sec
Max Torque: 1854 ft-lbf
Brake Torque: 900 ft-lbf

PLATTER
Platter Diameter 15.7"
Max Weight 500 lbs
T-Slot Width 0.626" - 0.630"
T-Slot Center Distance: 2.48"
Number of T-Slots: 5

AXIS MOTORS:
Max Thrust X 3300 lbf
Max Thrust Y 3300 lbf
Max Thrust Z 4050 lbf

TOOL CHANGER
Max Tool Diameter (full) 2.5"
Max Tool Diameter (adjacent empty) 5.0"
Max Tool Length (from gage line) 12"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 s s
Chip-to-Chip (avg) 3.6 s
Weight: 11,900 LBS

Options:

Haas Next Gen CNC Control
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
5 Axis
5th Axis Rotary Table

Description:

Pre-owned HAAS UMC500SS 2020 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this UMC500SS before it's gone.
