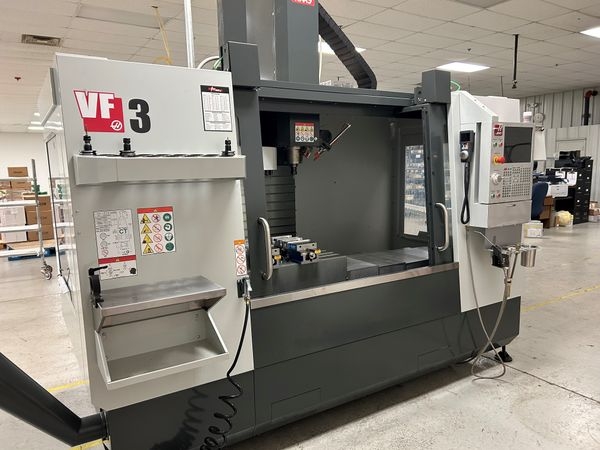

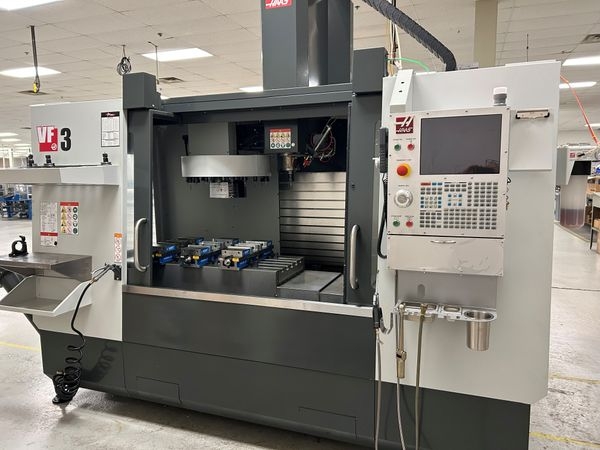

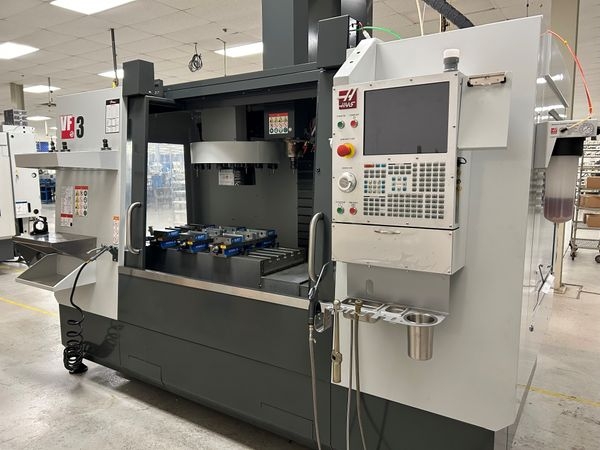

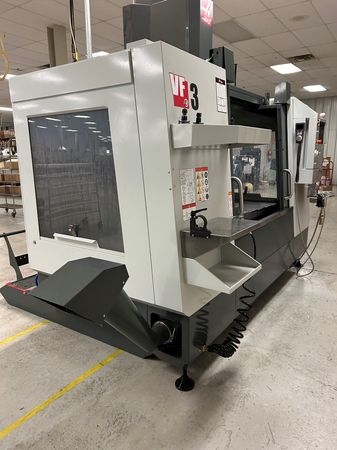

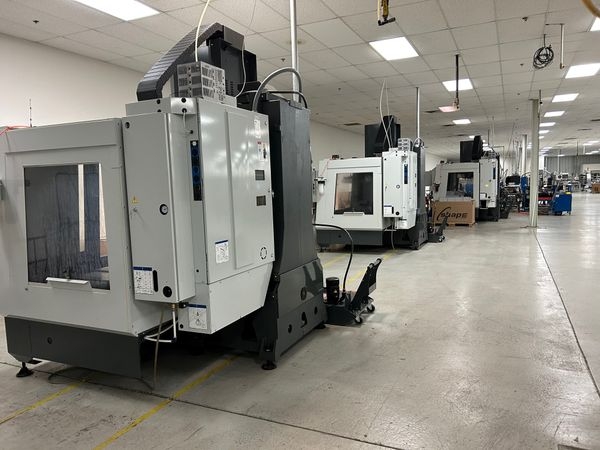

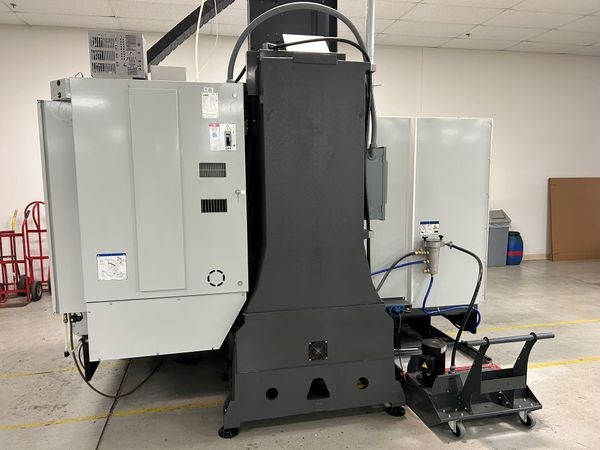

2020 HAAS VF3 #9857

X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Max Table Load: 3,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 20 ATC
Max Torque: 90 ft-lbf
Max Cutting: 650 ipm
Max Thrust X: 2550 lbf
Max Thrust Y: 2550 lbf
Max Thrust Z: 4200 lbf
Max Tool Diameter: 3.5"
Max Tool Weight: 12 lbs
Tool-to-Tool: 4.2 s
Chip-to-Chip: 4.5 s
Table Size: 48" x 18"
Dimensions: 152" x 99" x 102"
Weight: 11,720 LBS

Haas Next Gen CNC Control
Programmable Coolant
Chip Auger
Haas Automatic Air Gun
Auto Door-Mill
The Haas Minimum Quantity Lubrication (MQL)
High Speed Machining
Remote Jog Handle
