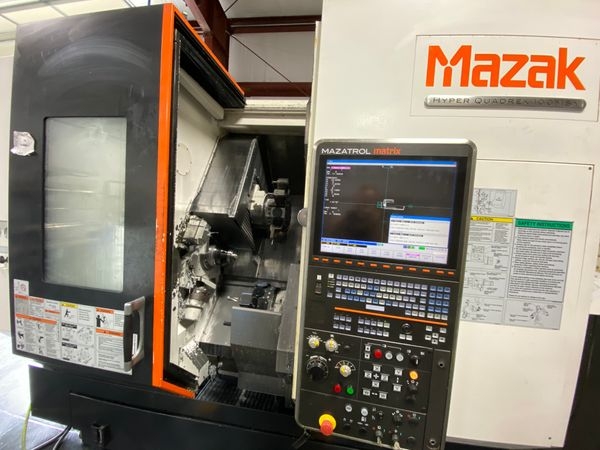

Used MAZAK HYPER QUADREX 100MSY CNC Lathe
Pre-owned MAZAK HYPER QUADREX 100MSY 2011 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Florida. This MAZAK CNC Lathe is available for a limited time.Get a quote today on this HYPER QUADREX 100MSY before it's gone.
Specs:
Bar Capacity: 2"
Chuck Size: 6"
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
X Axis Travel: 6.875"
X Axis 2: 4.31"
Z Axis Travel: 20.375"
Z Axis 2: 22.75"
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 12 Station
Y Axis Travel: 4"+/-
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 11.6"
Max Turning Length: 24.375"
Max Swing: 12.6"
Dimensions: 112" x 90" x 95"
Weight: 20,000 LBS
Chuck Size: 6"
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
X Axis Travel: 6.875"
X Axis 2: 4.31"
Z Axis Travel: 20.375"
Z Axis 2: 22.75"
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 12 Station
Y Axis Travel: 4"+/-
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 11.6"
Max Turning Length: 24.375"
Max Swing: 12.6"
Dimensions: 112" x 90" x 95"
Weight: 20,000 LBS
Options:
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Owner:
Steve (Located in USA)
