Seller Needs:
$177,500|
10803
|
3

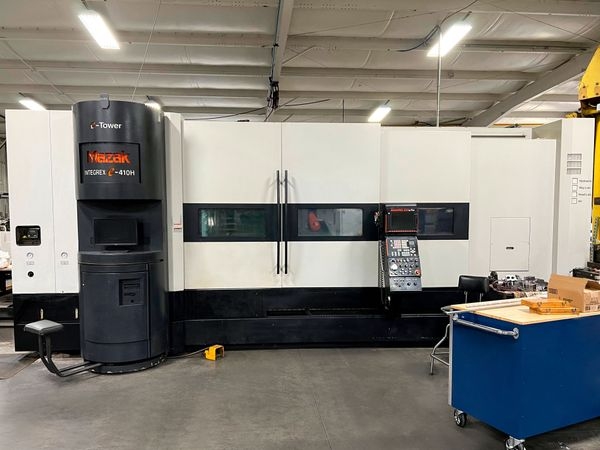

Pre-owned MAZAK INTEGREX E410HSII 2006 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a MAZATROL 640M PRO control. This CNC Machine is currently located in Georgia. This MAZAK CNC Lathe is available for a limited time. Get a quote today on this INTEGREX E410HSII before it's gone.
Seller Needs:
Payment:
Specs:
Bar Capacity: 4"
Chuck Size: 15"
Spindle Speed: 3,000 RPM
Spindle Motor: 35 HP
X Axis Travel: 29.14"
Z Axis Travel: 120"
Rapid Rate Z Axis: 410 IPM
Turret Tools: 60 Station
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 24"
Max Turning Length: 120"
Max Swing: 24"
Y Axis Travel: 16.14"
C Axis Travel: 360,000 Position
Milling Spindle Speed 12,000 RPM
Sub Spindle Speed: 4,000
Sub Spindle Chuck Size:
Sub Spindle Nose: A2-8
Spindle/Sub Index .0001 Degree
Sub Spindle 40HP
Sub Spindle Torque 533.8
Weight: 46,000 LBS
Chuck Size: 15"
Spindle Speed: 3,000 RPM
Spindle Motor: 35 HP
X Axis Travel: 29.14"
Z Axis Travel: 120"
Rapid Rate Z Axis: 410 IPM
Turret Tools: 60 Station
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 24"
Max Turning Length: 120"
Max Swing: 24"
Y Axis Travel: 16.14"
C Axis Travel: 360,000 Position
Milling Spindle Speed 12,000 RPM
Sub Spindle Speed: 4,000
Sub Spindle Chuck Size:
Sub Spindle Nose: A2-8
Spindle/Sub Index .0001 Degree
Sub Spindle 40HP
Sub Spindle Torque 533.8
Weight: 46,000 LBS
Options:
MAZATROL 640M PRO
Chip Conveyor
Tool Presetter
Tailstock
Live Tooling
Y Axis
5 Axis
80 TOOL CAPTO MAGAZINE
Chip Conveyor
Tool Presetter
Tailstock
Live Tooling
Y Axis
5 Axis
80 TOOL CAPTO MAGAZINE
Seller:
ArchL762
Location:
GA
