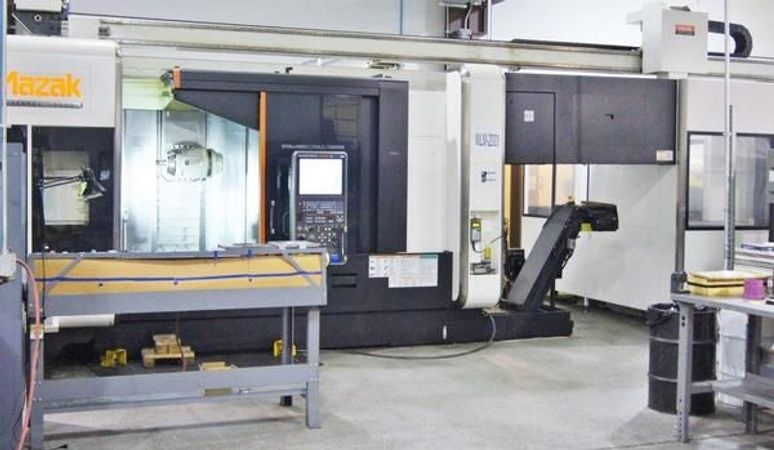

Pre-owned MAZAK INTEGREX i300 60in 2012 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Mazatrol Matrix 2 Conversational Control control. This CNC Machine is currently located in Maryland. This MAZAK CNC Lathe is available for a limited time. Get a quote today on this INTEGREX i300 60in before it's gone.
Notify Me:
Specs:
Bar Capacity: 3.15"
Main Spindle Chuck Size: 10"
Sub Spindle Chuck Size: 10"
Spindle Speed: 4,000 RPM
Spindle Motor: 40 HP
X Axis Travel: 24.21"
Z Axis Travel: 62.4"
Y-Axis Travel: 3.59"
Rapid Rate Z Axis: 1,969 IPM
Rapid Rate X Axis: 1,969 IPM
Max Turning Dia: 25.9"
Max Turning Length: 59.8"
Max Swing: 25.9"
B-Axis Milling Speed 12,000 RPM
B-Axis Rotation 240 Deg (-30/+210)
B-Axis 72 ATC Capto C8
TOTAL CUT TIME 2,997
Main Spindle Chuck Size: 10"
Sub Spindle Chuck Size: 10"
Spindle Speed: 4,000 RPM
Spindle Motor: 40 HP
X Axis Travel: 24.21"
Z Axis Travel: 62.4"
Y-Axis Travel: 3.59"
Rapid Rate Z Axis: 1,969 IPM
Rapid Rate X Axis: 1,969 IPM
Max Turning Dia: 25.9"
Max Turning Length: 59.8"
Max Swing: 25.9"
B-Axis Milling Speed 12,000 RPM
B-Axis Rotation 240 Deg (-30/+210)
B-Axis 72 ATC Capto C8
TOTAL CUT TIME 2,997
Options:
Mazatrol Matrix 2 Conversational Control
Chip Conveyor
Tool Presetter
Live Tooling
B-Axis .0001 DEGREE CONTOURING
MAZAK FLEX GL-200F GANTRY LOADER (D3 HAND)
W-AXIS TRAVEL 61.5"
72-STATION TOOL CHANGER (CAPTO C8)
THROUGH SPINDLE COOLANT 213 psi (Milling Spindle) TSC
ABSOLUTE POSITIONING
SIMULTANEOUS 5-AXIS
AUTOMATIC CHUCK OPEN & CLOSE (BOTH SPINDLES)
CHUCK AIR BLAST (RIGHT SPINDLE)
BALLSCREW COOLERS (X AXIS)
THREAD START POINT COMPENSATION
ROT-AXIS SHAPE COMPENSATION
THREAD CUT-SPEED OVERRIDE
POLAR COORDINATES INPUT
EIA 3D COMPENSATION
EIA HERICAL TAP CYCLE
TILTED WORKING PLANE
RE-THREAD
G54.1
EIA
Chip Conveyor
Tool Presetter
Live Tooling
B-Axis .0001 DEGREE CONTOURING
MAZAK FLEX GL-200F GANTRY LOADER (D3 HAND)
W-AXIS TRAVEL 61.5"
72-STATION TOOL CHANGER (CAPTO C8)
THROUGH SPINDLE COOLANT 213 psi (Milling Spindle) TSC
ABSOLUTE POSITIONING
SIMULTANEOUS 5-AXIS
AUTOMATIC CHUCK OPEN & CLOSE (BOTH SPINDLES)
CHUCK AIR BLAST (RIGHT SPINDLE)
BALLSCREW COOLERS (X AXIS)
THREAD START POINT COMPENSATION
ROT-AXIS SHAPE COMPENSATION
THREAD CUT-SPEED OVERRIDE
POLAR COORDINATES INPUT
EIA 3D COMPENSATION
EIA HERICAL TAP CYCLE
TILTED WORKING PLANE
RE-THREAD
G54.1
EIA
