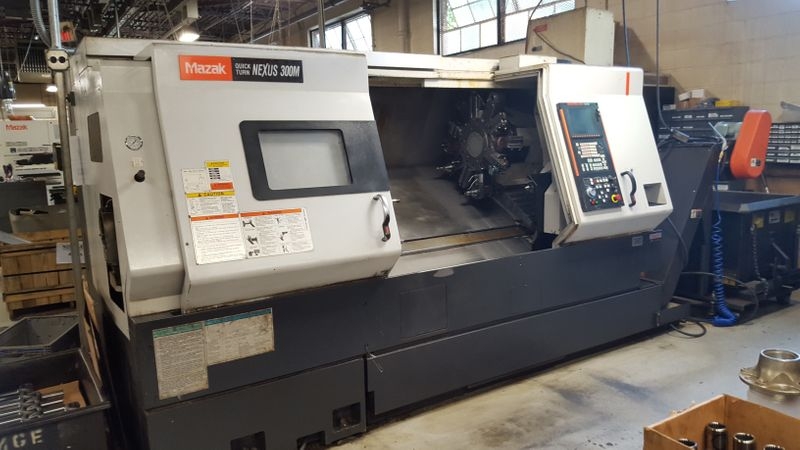

Used MAZAK QTN300M 26in CNC Lathe
Pre-owned MAZAK QTN300M 26in 2007 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Kentucky. This MAZAK CNC Lathe is available for a limited time.Get a quote today on this QTN300M 26in before it's gone.
Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 4,000 RPM
Spindle Motor: 35 HP
X Axis Travel: 10.13"
Z Axis Travel: 26"
Rapid Rate Z Axis: 984 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 16.54"
Max Turning Length: 50"
Max Swing: 29.5"
C Axis Index 0.001 Deg
Live Tooling 4,500 RPM
Live Tooling 10HP
Dimensions: 117" x 73" x 73"
Weight: 16,500 LBS
Chuck Size: 10"
Spindle Speed: 4,000 RPM
Spindle Motor: 35 HP
X Axis Travel: 10.13"
Z Axis Travel: 26"
Rapid Rate Z Axis: 984 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 16.54"
Max Turning Length: 50"
Max Swing: 29.5"
C Axis Index 0.001 Deg
Live Tooling 4,500 RPM
Live Tooling 10HP
Dimensions: 117" x 73" x 73"
Weight: 16,500 LBS
