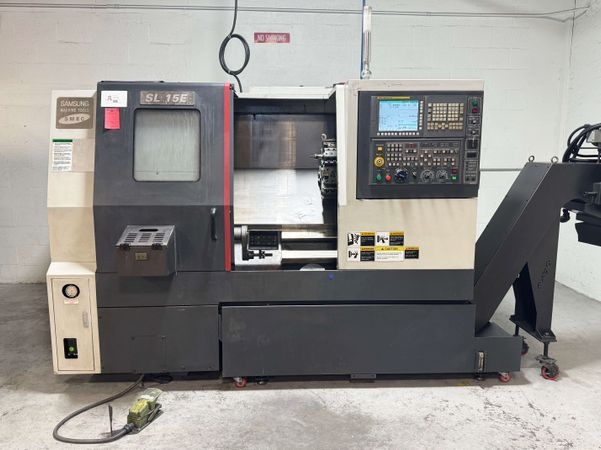

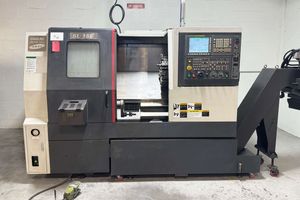

2016 SMEC Samsung SL15E CNC Lathe
This 2016 SMEC Samsung SL15E (sold and installed in 2017) comes from a medical component manufacturer that recently upgraded to new Swiss-style CNC machines. The SL15E remains fully functiona...Read More
Rigging:
$1,500
Specs:
Bar Capacity: 1.77"

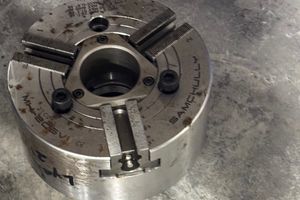

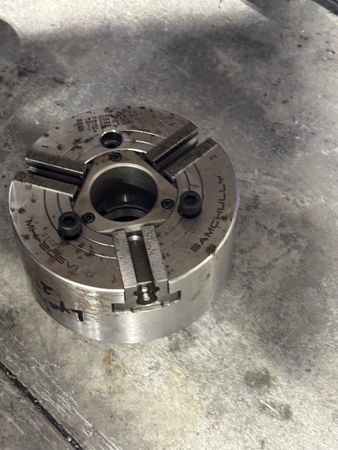

Chuck Size: 6" (Not Mounted, Included)
Spindle Speed: 6,000 RPM
Spindle Motor: 25 HP
X Axis Travel: 7.09"
Z Axis Travel: 13"
Max Turning Dia: 11.81"
Max Turning Length: 11.81"
Dimensions: 135" x 60" x "
Weight: 8,175 LBS
swing over bed: 17.7in
spindle nose: A2-5
control: Fanuc 0iTD
features: USB, Ethernet, Rigid Tapping, Tool Eye, Chip Conveyor, Misc. Tool Holders
number of axes: 2
VIDEO:
Covers behind turret have some dents, cosmedic, still functional
X & Z axis job and operate
Hydraulic unit needs to be repaired for open close chuck
Over all machine needs to be cleaned and updated.
Estimated cost $4k-$5k
MFG in 2016 sold and installed 2017
HOURS:
Cycle Time 6,896
Over all the machine is in good condition, needs to be cleaned and detailed. Coming out of Medical facility in South Florida going to high end swiss machines and automated clean station.
Chuck Size: 6" (Not Mounted, Included)
Spindle Speed: 6,000 RPM
Spindle Motor: 25 HP
X Axis Travel: 7.09"
Z Axis Travel: 13"
Max Turning Dia: 11.81"
Max Turning Length: 11.81"
Dimensions: 135" x 60" x "
Weight: 8,175 LBS
swing over bed: 17.7in
spindle nose: A2-5
control: Fanuc 0iTD
features: USB, Ethernet, Rigid Tapping, Tool Eye, Chip Conveyor, Misc. Tool Holders
number of axes: 2
VIDEO:
Covers behind turret have some dents, cosmedic, still functional
X & Z axis job and operate
Hydraulic unit needs to be repaired for open close chuck
Over all machine needs to be cleaned and updated.
Estimated cost $4k-$5k
MFG in 2016 sold and installed 2017
HOURS:
Cycle Time 6,896
Over all the machine is in good condition, needs to be cleaned and detailed. Coming out of Medical facility in South Florida going to high end swiss machines and automated clean station.
Options:
Fanuc Oi-TF
Chip Conveyor
Tailstock
Chip Conveyor
Tailstock
Seller:
JayM703
Location:
USA
