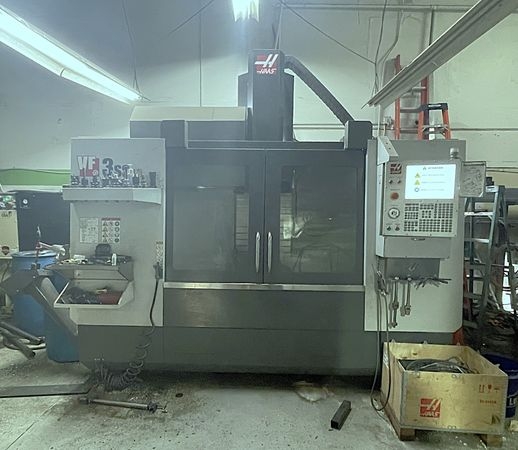

Pre-owned HAAS VF3SS 2020 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Haas Next Gen CNC Control control. This CNC Machine is currently located in Florida. This HAA...Read More
Notify Me:
Specs:
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 1,750 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 24 ATC
Max Cutting: 833 ipm
Max Thrust X: 3085 lbf
Max Thrust Y: 3085 lbf
Max Thrust Z: 3923 lbf
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 2.8 s
Chip-to-Chip (avg): 3.6 s
Weight: 11,720 LBS
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 1,750 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 24 ATC
Max Cutting: 833 ipm
Max Thrust X: 3085 lbf
Max Thrust Y: 3085 lbf
Max Thrust Z: 3923 lbf
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 2.8 s
Chip-to-Chip (avg): 3.6 s
Weight: 11,720 LBS
Options:
Haas Next Gen CNC Control
Probe
Programmable Coolant
4th Axis Rotary Table
Auto Doors
HRT210 4th Axis Rotary
Wireless Networking
Chip Auger
Tooling not included
$123,755 brand new
Probe
Programmable Coolant
4th Axis Rotary Table
Auto Doors
HRT210 4th Axis Rotary
Wireless Networking
Chip Auger
Tooling not included
$123,755 brand new
