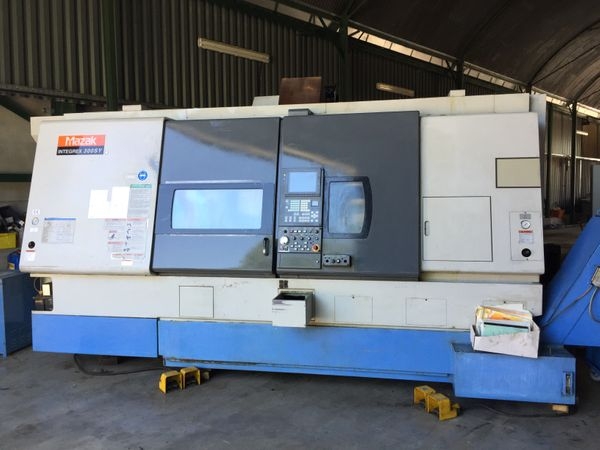

Used MAZAK INTEGREX 300SY CNC Lathe
Pre-owned MAZAK INTEGREX 300SY 2000 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Texas. This MAZAK CNC Lathe is available for a limited time. Get a quote today on this INTEGREX 300SY before it's gone.
Specs:
Bar Capacity: 3"
Chuck Size: 12"
Spindle Speed: 3,500 RPM
Spindle Motor: 35 HP
X Axis Travel: 22.83"
Z Axis Travel: 43.19"
Rapid Rate Z Axis: 787 IPM
Turret Tools: 40 ATC Station
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 17.7"
Max Turning Length: 40"
Max Swing: 24"
Sub Spindle 3,500
Turret Slide (Y Axis) 9" + or -
Mill Spindle 10,000 RPM
Weight: 26,600 LBS
Chuck Size: 12"
Spindle Speed: 3,500 RPM
Spindle Motor: 35 HP
X Axis Travel: 22.83"
Z Axis Travel: 43.19"
Rapid Rate Z Axis: 787 IPM
Turret Tools: 40 ATC Station
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 17.7"
Max Turning Length: 40"
Max Swing: 24"
Sub Spindle 3,500
Turret Slide (Y Axis) 9" + or -
Mill Spindle 10,000 RPM
Weight: 26,600 LBS
