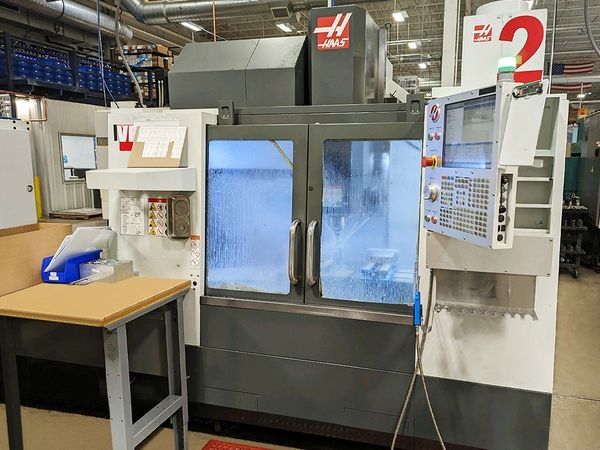

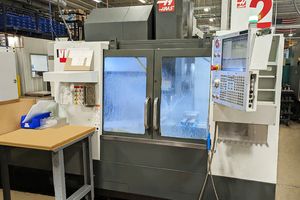

The item under consideration is a used 2018 HAAS VF2SS Vertical Machining Center. Retailing at a new price of $105,550, this machining center is poised to meet your industrial needs without incurring the cost of a brand new u...Read More
Specs:
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40 CT
Tool Changer: 30 ATC
Max Cutting 833 ipm
Max Weight 1500 lb
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Chip-to-Chip 3.6 s
Coolant Cap 55 gal
Amps 3 Phase 35A (High)
Table Size: 36" x 18"
Weight: 7,800 LBS
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40 CT
Tool Changer: 30 ATC
Max Cutting 833 ipm
Max Weight 1500 lb
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Chip-to-Chip 3.6 s
Coolant Cap 55 gal
Amps 3 Phase 35A (High)
Table Size: 36" x 18"
Weight: 7,800 LBS

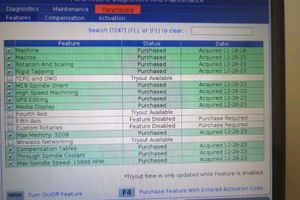

Options:
Haas Next Gen CNC Control
Probe
Coolant Thru Spindle
Programmable Coolant
15k Spindle
Pre Wired for 4th Axis
Rigid Tapping
Rotation and Scaling
High Speed Machining
Max Memory 32GB
Compensation Tables
M19 Spindle Orientation
Macros
Probe
Coolant Thru Spindle
Programmable Coolant
15k Spindle
Pre Wired for 4th Axis
Rigid Tapping
Rotation and Scaling
High Speed Machining
Max Memory 32GB
Compensation Tables
M19 Spindle Orientation
Macros
