Machine Overview

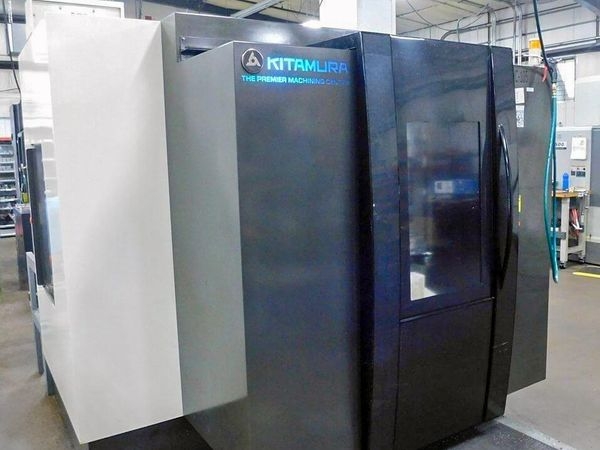

This 2014 Kitamura HX400G is on sale for industrial and manufacturing applications. This product was built by Kitamura, a respected name in the sector. The HX400G, Model number, and Serial number 44188, point to a machine designed with precision and capability in mind. The control system, known as Arumatik-Mi, assists operators with easy handling and operation.
Regarding its specifications, this machine features a decent table size of 15.7" by 15.7". It assures travel along the X, Y, Z coordinates measuring at 28.9", 24", and 24" respectively. With these measurements, the machine is suitable for medium to large scale projects requiring precise movement. The spindle carries a CAT40 taper and operates at an impressive speed of 15,000Rpm.
Moreover, the HX400G also has an Automated Tool Changer (ATC) capacity of 50. With Tool Change Time (T-T/C-C) of 1.0 sec. / 3.2 sec. and Rapid Feed (X, Y, Z) of 1,969ipm (50m/min). This model also features a Rapid Feed (B) of 15,000deg./min. It operates on 3Ph, 200/220V, 45KVA, making it suitable for workplaces with standard electrical setup.
In terms of dimensions, the machine's CNC size is 168"Lx106"Wx109"H while the Coolant/Chip Conveyor stands at 125"Lx52"Wx55"H. With an approximate weight of 22,000Lbs, this is a robust and sturdy machine. Additional features include, (2) 400mmx400mm Pallets, Renishaw OMP40 Probing System, Chip conveyor, Internal augers for exceptional chip clearing, Hydraulic Chiller, 1,000Psi Coolant Spindle thru/Shower, Mistaway Collector and all available manuals.
Be advised, Machine Vises, Tombstones, CAT40 Tool Holders and Tool boxes are not part of the purchase. This 2014 Kitamura HX400G maximizes capabilities for its upcoming users. You are invited to consider this offer as an upgrade or addition to your manufacturing setup.
