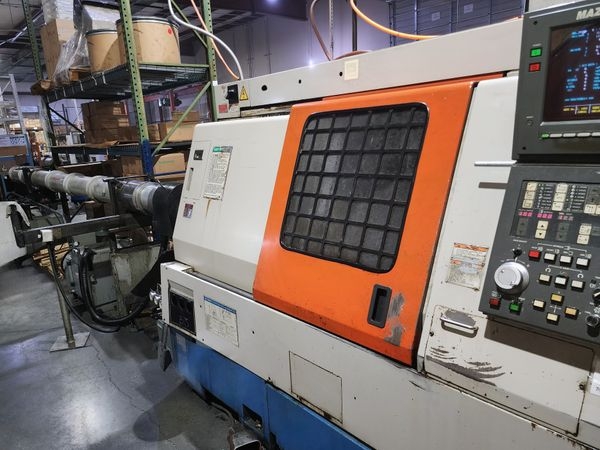

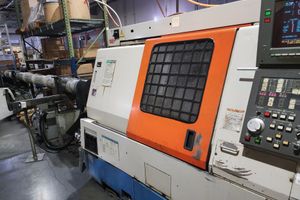

This 1992 MAZAK SQT18M CNC Lathe is a great machine for any shop. It operates using a Mazatrol T32-3 CNC Control system, known for its clear, simple operation and endurance. This model has options and unique updates that furt...Read More
Notify Me:
Specs:
Bar Capacity: 2.52"
Chuck Size: 10"
Spindle Speed: 3,000 RPM
Spindle Motor: 10 HP
Swing.................................................. 20 "
Machining diameter ...........................11.75 "
Distance between spindles ................34 "
Chuck...................................................10”
Max. bar ..............................................2.5 ”
X-Axis...................................................7"
Z-Axis.................................................. 22"
First spindle ........................................4,000 rpm.
Spindle nose....................................... A-2-6
Spindle indexing increment............... 0.001 ”
Second spindle....................................4,000 rpm.
Second spindle headstock stroke..... 23 ”
Second headstock rapid rate............. 708 IPM
Turret stations..................................... 12 tools
Live Tooling ..........................................3,000 rpm
Traverse rate, rapid.............................. X & Z 1180 IPM
Dimensions: 123" x 63.4" x 80.3"
Weight: 10,475 LBS
Chuck Size: 10"
Spindle Speed: 3,000 RPM
Spindle Motor: 10 HP
Swing.................................................. 20 "
Machining diameter ...........................11.75 "
Distance between spindles ................34 "
Chuck...................................................10”
Max. bar ..............................................2.5 ”
X-Axis...................................................7"
Z-Axis.................................................. 22"
First spindle ........................................4,000 rpm.
Spindle nose....................................... A-2-6
Spindle indexing increment............... 0.001 ”
Second spindle....................................4,000 rpm.
Second spindle headstock stroke..... 23 ”
Second headstock rapid rate............. 708 IPM
Turret stations..................................... 12 tools
Live Tooling ..........................................3,000 rpm
Traverse rate, rapid.............................. X & Z 1180 IPM
Dimensions: 123" x 63.4" x 80.3"
Weight: 10,475 LBS
Options:
Mazatrol T32-3
Chip Conveyor
Tailstock
Bar Feeder
Live Tooling
Chip Conveyor
Tailstock
Bar Feeder
Live Tooling
